How to Identify ADAS Features on a Vehicle Without a Scan Tool
This article provides an in-depth exploration of ADAS, covering foundational concepts, practical applications, and engineering insights.
Modern vehicles are packed with sophisticated safety technology designed to protect drivers and prevent collisions. When performing vehicle maintenance or collision repairs, identifying these integrated safety systems is a crucial first step. While many technicians immediately reach for diagnostic equipment, can you actually identify modern ADAS features without plugging in a scan tool?
The answer is a resounding yes. Before ever connecting diagnostic equipment, a simple visual walkaround can reveal a wealth of information about a vehicle’s installed ADAS technology.

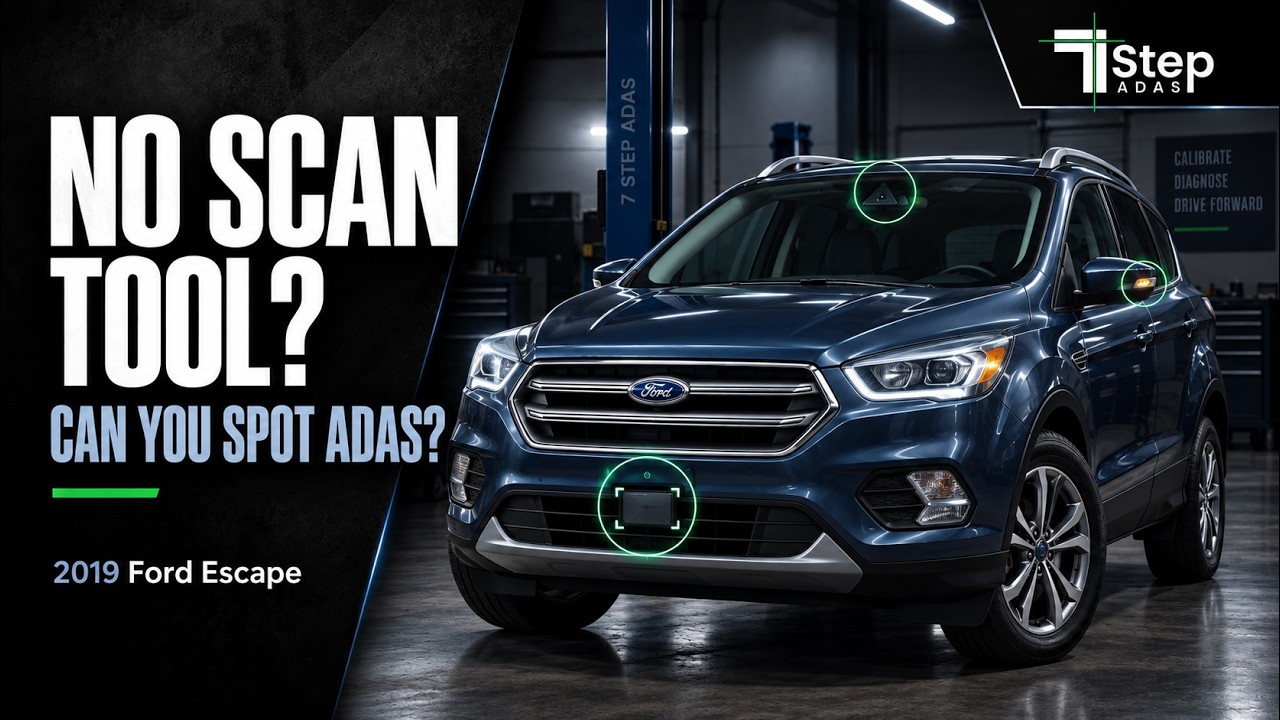

Perform a Careful Visual Inspection
To spot built-in safety features manually, start by inspecting the exterior of the vehicle carefully. Auto manufacturers strategically place sensors, radars, and cameras in specific visual locations across the bodywork and glass.
Here are the key areas to check during your initial visual inspection:
- Windshield and Rearview Mirror: Look at the top center of the windshield near the rearview mirror housing. Forward-facing cameras located here are typically responsible for lane departure warnings, lane-keeping assist, and traffic sign recognition.
- Front Grille and Bumper: Look for flat rectangular panels or millimeter-wave radar units hidden behind the front emblem or integrated into the lower bumper mesh. These components power adaptive cruise control and automatic emergency braking systems.
- Side Mirrors and Mirrors: Check the side mirror housings for small downward-facing camera lenses (used in 360-degree surround-view systems) or blind-spot monitoring icons etched directly onto the mirror glass.
- Bumper Covers: Small, circular ultrasonic sensors embedded flush along the front and rear bumpers indicate parking assist and rear cross-traffic alert capabilities.
Why Visual Pre-Inspections Matter
While a diagnostic scan tool is ultimately required for calibration, error code scanning, and system health checks, a manual pre-inspection walkaround saves valuable time. It helps technicians spot misaligned brackets, cracked windshields, or physical damage to radar units before beginning any repair work.
By learning how ADAS components are physically integrated into modern cars, technicians can perform safer, more accurate repairs and ensure all safety systems function as intended.
